Braq Cube® WNC

Designed by The Black Tank

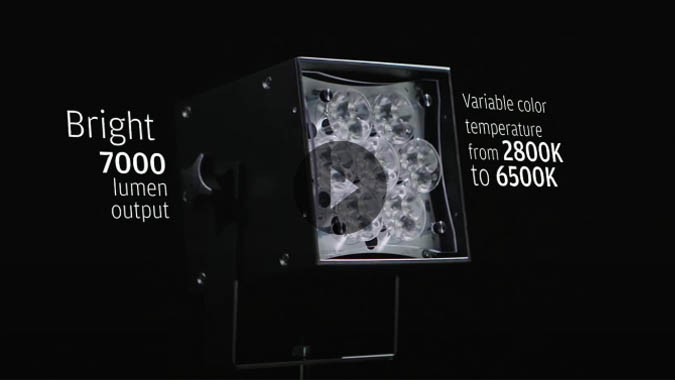

Size matters - and Braq Cubes deliver where others can't! Using 21 high-quality Cree XML 4W emitters, the Braq Cube WNC designed by The Black Tank outputs more than 7000 lumens and can adjust from 2700K to 6500K. A unique mix of warm, neutral and cool LEDs ensure excellent rendering across all color temperatures. Small enough to be built into scenery or soffits, and lightweight enough to mount as a track light, the Braq Cube WNC is perfect for use in broadcast & photography studios and film & TV sets, as well as retail stores, museums and other architectural installations that require a bright, gorgeous white light with excellent color rendering.

Bold yet Refined

At its native 19° beam spread, the Braq Cube WNC packs a punch of light! Every Braq Cube comes complete with a full set of 20°, 40° and 60° lenses to provide the beam control needed by most designers. A range of Asymmetrical lenses and other beam-shaping accessories are also available.

Innovative Compact Design

Very little space is wasted in the elegant, rugged design of the Braq Cube. Our unique, patented heat management system allows 100 watts of LEDs to be packed into a tiny 5 inch cube - a fraction of the space needed by other comparable, 100W lights on the market. The Braq Cube has been engineered to be durable, reliable and affordable without sacrificing the qualities expected by demanding lighting professionals.

Sophisticated yet Simple

Ready for the most demanding professional environments, the Braq Cube is powered by a positive locking Neutrik Powercon connector with power pass-thru and 5-pin XLR, DMX in/out connectors for easy daisy-chain configuration. Two universes of high speed DMX512 in 8 or 16 bit resolution allow for completely flicker-free dimming from your console. An optional "Filament Mode" can be set to mimic the fade of an incandescent lamp going to black. For use without DMX, an intuitive full text LCD control panel dials in brightness and color temperature.

Versatile and Modular

Braq Cubes are small enough to be built into scenery or soffits, and light enough to mount as a track light. A novel yoke design allows cubes to be easily hung with c-clamps, configured in linear strips or in stacked arrays, mounted on c-stands, fit with floor trunions, converted to canopy mount, retrofit with track hanging adapters - or virtually any configuration an installer requires.

LED:

21 x 4W Cree XM-L LEDs

Output:

7100 Lumens (no lens)

Lumen Maintenance:

100,000 hours L50 at 25°C
50,000 hours L50 at 45°C

Color Temperature:

2700K - 6500K

Operation:

DMX: 8 or 16 bit DMX512
Manual: Full Text LCD user interface sets color output

Input Voltage:

90 - 240 VAC 50/60Hz

Power/AC Input:

Neutrik Powercon input and pass-thru

Data:

5-pin XLR Male, 5-pin XLR Female - DMX

Power Consumption:

100 Watts at maximum output

Operating Temperature:

-13° to 113° F (-20° to 45° C)

Humidity:

0 - 95% non condensing

Dimensions:

5in x 5in x 5.3in (127mm x 127mm x 135mm)

Weight:

3.5 lbs (1.6 kg)

Housing:

Powder coated aluminum extrusion (1/8 in wall)

Approvals and Listings:

FCC Class A Radiated and Conducted
ETL / UL Standards 1573 and 8750
cETL / CSA C22.2#166-M1983
CE
RoHS Compliant
IP20 Rated
Dry locations only



  • Bright 7000 lumen output
  • Variable color temperature from 2700K to 6500K
  • Optional "Filament Mode" mimics the delayed blackout glow of an incandescent lamp
  • Low, 100W power consumption allows over 20 fixtures to be powered on a single 20A circuit
  • No expensive power supply units or ballast required. Directly connect to 90-240 VAC mains power.
  • Comes with a complete lens set including: 20° spot, 40° medium and 60° wide flood
  • Power Cord configurations include:
    - 8-ft AWG16 cord with Neutrik Powercon and 3-prong Edison ends
    - No cord
  • Optional Power Cord accessories include:
    - 8-ft AWG16 cord with Neutrik Powercon and 3-prong Edison ends, in-line switch
    - 8-ft AWG16 cord with Neutrik Male/Female ends (Powercon Pass-Thru
  • Flicker free DMX dimming (0 ~ 100%) and control
  • Intuitive full text LCD panel for manual operation
  • Compact design suitable for mounting in small spaces or architectural installations.
  • Track Light mounting adapters available for many common track brands or with our fully integrated Rosco Track.
  • Auto temperature sensing with fault detection and protection
  • ETL/CE listed
