Braq Cube® 4C & 4CA

Designed by The Black Tank

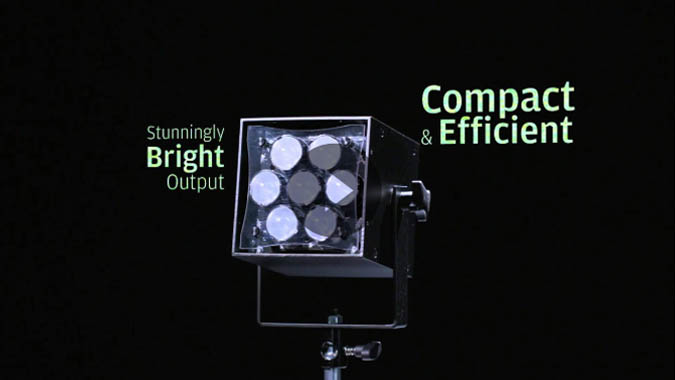

Size matters - and Braq Cubes deliver where others can't! Both the Braq Cube 4C and Braq Cube 4CA feature 100 watts of color-mixing LED output inside a 5-inch cube! Despite its compact size, the Braq Cube produces more than enough light to replace conventional wash lights on stage, inside broadcast studios, or in permanent architectural installations.

The Braq Cube 4CA features a unique, phosphor- converted amber emitter – not found in any other RGBA fixture this size. This enables it to produce an expanded palette of saturated colors and rich, warm-tones of full-spectrum white light.

Excellent Color Rendering

The high-quality emitters inside the Braq Cube 4C and 4CA LED fixtures make mixing the right color simple. Powered by OSRAM’s newest generation of 4-channel chips, Both the 4C and 4CA provide consistent, repeatable colored light and a single, fringe-free shadow.

The white emitter inside the RGBW Braq Cube 4C allows designers to de-saturate their hues to create a wide variety of saturated, mid-tone and pale tint colors, and an excellent range of white light color temperatures.

The specially formulated, phosphor-converted Amber emitter inside the RGBA Braq Cube 4CA offers a broader spectrum that provides a color gamut that includes rich warm-tones, and a warm white light that features a full-color spectrum and high CRI.

Wide Variety of Beam Control Options

Each Braq Cube 4C and 4CA fixture ships with a complete set of 20°, 40° and 60° spread lenses to provide designers with the beam control they need for their projects. A range of Asymmetrical Spread Lenses and other beam-shaping accessories are also available, including Barn Doors, a Top Hat and an Egg Crate Louver.

Sophisticated yet Simple

Ready for the most demanding professional environments, the Braq Cube is powered by a positive locking Neutrik Powercon connector with power pass-thru and 5-pin XLR, DMX in/out connectors for easy daisy-chain configuration. Two universes of high speed DMX512 in 8 or 16 bit resolution allow for completely flicker-free dimming from your console. An optional "Filament Mode" can be set to mimic the fade of an incandescent lamp going to black. For use without DMX, an intuitive full text LCD control panel dials in brightness and color selection.

Versatile and Modular

Braq Cubes are small enough to be built into scenery or soffits, and light enough to mount as a track light. A novel yoke design allows cubes to be easily hung with c-clamps, configured in linear strips or in stacked arrays, mounted on c-stands, fit with floor trunions, converted to canopy mount, retrofit with track hanging adapters - or virtually any configuration an installer requires.

LED:

7 x 12W Osram Ostar multi-chip

Output:

4C: 1800 Lumens (no lens)
4CA: 1710 Lumens (no lens)

Lumen Maintenance:

80,000 hours B10 L70 at 25°C
(LM79-08 Standard)

Color Range:

4C: Red/Green/Blue/White (6500K)
4CA: Red/Green/Blue/Amber

Operation:

DMX: 8 or 16 bit DMX512
Manual: Full Text LCD user interface sets color output

Input Voltage:

90 - 240 VAC 50/60Hz

Power/AC Input:

Neutrik Powercon

Data:

5-pin XLR Male, 5-pin XLR female – DMX

Power Consumption:

100 Watts at maximum output

Operating Temperature:

-13° to 113° F (-20° to 45° C)

Humidity:

0 - 95% non-condensing

Dimensions:

5in x 5in x 5.3in (127mm x 127mm x 135mm)

Weight:

3.5 lbs (1.6 kg)

Housing:

Powder coated aluminum extrusion (1/8 in wall)

Approvals and Listings:

FCC Class A Radiated and Conducted
ETL / UL Standards 1573 and 8750
cETL / CSA C22.2#166-M1983
CE
RoHS Compliant
IP20 Rated



Dry locations only



Features and Benefits:

  • Powerful, quad-chip, RGBW or RGBA LED emitters blend light without shadow fringing
  • RGBW color mixing offers a dramatic, saturated palette that is balanced with a subtle, nuanced range of tints and accent colors
  • RGBA color mixing offers richly saturated colors and full spectrum, warm white light color temperatures
  • Optional "Filament Mode" mimics the delayed blackout glow of an incandescent lamp
  • Low 100W power consumption allows more than 20 fixtures on a single 20A circuit
  • No expensive power supply unit or ballast required. Directly connect 90-240 VAC mains power
  • Comes with a complete spread lens set including: 20° spot, 40° medium and 60° wide flood
  • Power Cord configurations include:
    • 8-ft AWG16 cord with Neutrik Powercon and 3-prong Edison ends
    • No cord
  • Optional Power Cord Accessories include:
    • 8-ft AWG16 cord with Neutrik Powercon, 3-prong Edison ends, and an in-line switch

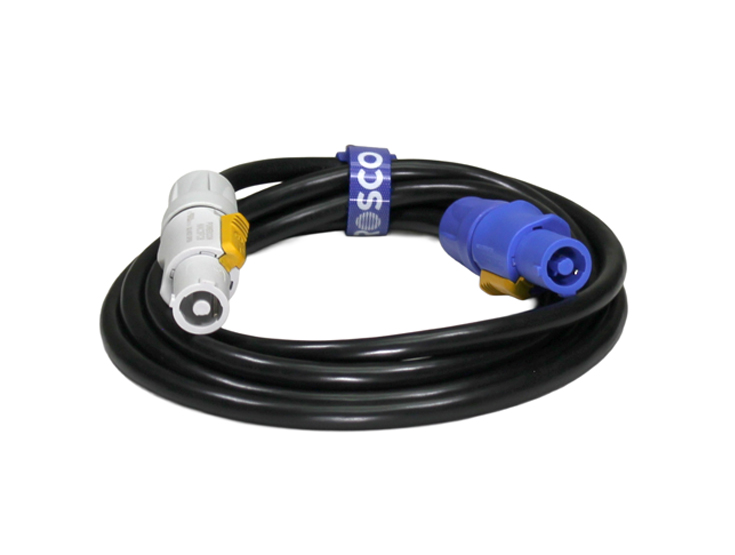

    • 8-ft AWG16 cord with Neutrik Male/Female ends (Powercon Pass-Thru)
  • Flicker free DMX dimming (0 ~ 100%) and control
  • Intuitive, full text LCD panel for manual operation
  • Compact design suitable for mounting in small spaces or installations with low ceilings
  • Track lighting mounting adapters available for many common track brands or with our fully integrated Rosco Track.
  • Auto temperature sensing with fault detection and protection
  • ETL/CE listed
