Image Spot® Mini

Brilliant Imaging.

Don’t let its diminutive size fool you, the Image Spot Mini produces an impressive amount of light! This ultra-compact gobo projector provides almost twice as much output as fixtures twice its size.

Featuring a single, brilliant LED and highly efficient optics, the Image Spot Mini is capable of producing brilliant gobo projection up to 26 feet (8m) away!

The Image Spot Mini is IP65-rated, enabling it to be used indoors and outdoors, and it’s available in 3000K warm white, 5500K cool white, and track-mounted models.

Please note that the Image Spot Mini requires an external power supply for operation and does not ship with a lens. Make sure to choose the Image Spot Driver Accessory that fits your control protocol and the proper Image Spot Mini Lens Optic Accessory for your project when ordering.

Impressive Light Output From An Ultra-Compact Form Factor

The Image Spot Mini measures in at a mere 4.7in x 3.4in x 1.9in (119mm x 84.2mm x 48mm), yet it’s capable of producing up to 1050 lumens of light output. Many small LED gobo projectors lack brightness, while brighter units need large housings and/or heat-sinks. The unique design of the Image Spot Mini provides an excellent balance of compact size and bright output.

Accepts Image Spot Mini Gobos And Permacolor Dichroic Glass Filters

The Image Spot Mini is capable of projecting virtually any pattern from the Rosco Gobo Catalog. This enables designers to choose from the world’s largest library of standard gobo designs – or, project a custom gobo with a specific image, logo or message. Gobos for the Image Spot Mini come in a custom-designed carrier that ensures a tight fit into the fixture. The Image Spot Mini can accept steel, black and white & color glass gobos. Rosco Permacolor dichroic glass filters can also fit inside the Image Spot Mini gobo cassette to create long-lasting color effects, correction or enhancement.

Crystal Clear Optics

The optics engineered for Image Spot Mini produce a light beam with the highest uniformity and resolution, enabling the fixture to project crisp gobo imagery from edge to edge of the beam.

Designed For Use Indoors And Outdoors

Whether it’s inside a museum, outside a restaurant, or a part of a themed attraction, the IP65-rated Image Spot Mini provides the versatility to project gobos everywhere and anywhere they might be required.

Multiple Control Options

The output of the Image Spot Mini can be controlled using its on-board dimming controls, or via an external 0-10VDC, Push to Dim, DALI, or DMX Drivers – all of which provide flicker-free dimming from 100% ~ 0%. The Image Spot Mini ships with a factory-installed, exterior-rated power/data cable for easy integration.

Track Mountable

The compact and lightweight form factor of the Image Spot Mini make it very attractive for track lighting installations. Track mountable units of the Image Spot Mini are available and are compatible with our Rosco Track, which can deliver power and control-signal to the fixture in a streamlined installation.

What’s In The Box:

  • Image Spot Mini LED gobo projector
  • User Guide
  • Image Spot Welcome Pack
  • 4mm Hex Driver

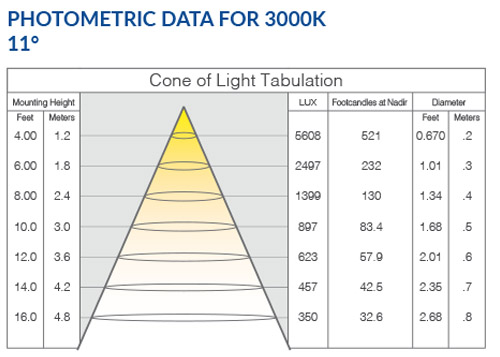

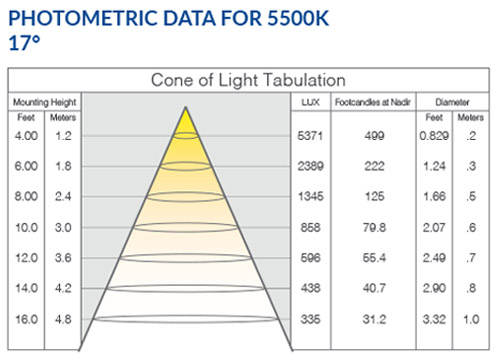

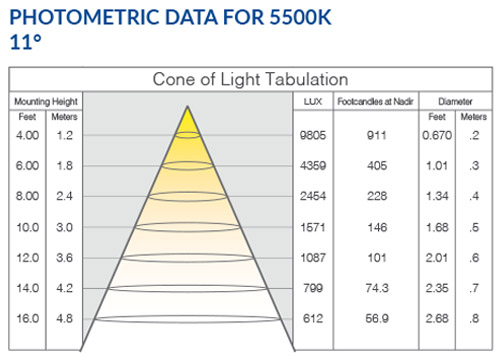

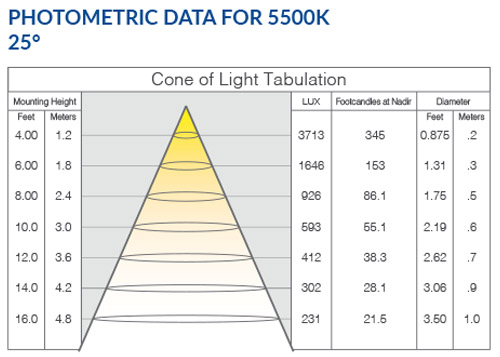

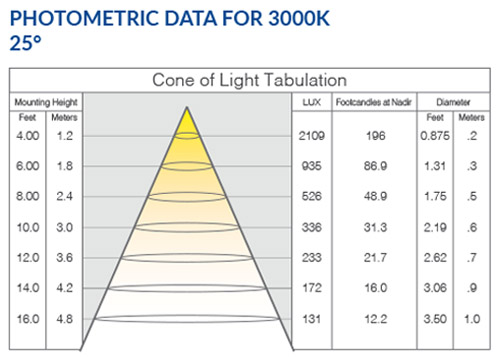

Please note that the Image Spot Mini requires an external power supply for operation and does not ship with a lens. Make sure to choose the Image Spot Driver Accessory that fits your control protocol and the proper Image Spot Mini Lens Optic Accessory for your project when ordering. Lens options include: 11°, 17° and 25°. Click on Photometrics tab above or download the Image Spot Mini Photometrics Data Sheet for more information.

Input Voltage: 14VDC , 1.0A

Power Consumption: 14 Watts at maximum output

Color Temperature Options: 5500K or 3000K

Output:

  • 5500K Model: 400 lumens
  • 3000K Model: 300 lumens



CRI:

  • 3000K Model: 98+
  • 5500K Model: 75+



Lumen Maintenance: 90,000 hours at 50°C (LM80)

Power/Data Connection: 6 ft. (2m) Insulated Cable/Gland (IP65), unterminated (connector not included)

Dimensions: 4.7in x 3.4in x 1.9in (119mm x 84.2mm x 48mm) excluding yoke

Weight: 2.2 lbs (1.0 kg)

Operating Temperature: -13° F to 113° F (-25° C to 45° C)

IP Rating: IP65

Humidity: 0 - 95% non-condensing

Housing: Anodized Aluminum Extrusion

Approvals:

  • ETL / UL Standards #2108:2015
  • cETL / CSA C22.2#250.0:2018 Ed.4
  • CE

compliance

image spot mini diagram

image spot mini track diagram

Image Spot Mini Gobos & Permacolor Filters:

For optimum image quality and performance, use Rosco Image Spot Gobos and Permacolor Filters, which feature custom bezels that enable a secure fit inside the Image Spot gobo cassette.

Standard Gobos

XXXXX-MINI Image Spot Mini Standard Gobo, XXXXX = The five digit standard gobo number

Custom Gobos

25072101MINI - Image Spot Mini Custom Steel Gobo

260CUSBWMINI - Image Spot Mini Custom B&W Glass Gobo

260CUS1CMINI - Image Spot Mini Custom One-Color Glass Gobo

260CUS2CMINI - Image Spot Mini Custom Two-Color Glass Gobo

260CUS3CMINI - Image Spot Mini Custom Three-Color Glass Gobo

260CUSMCMINI - Image Spot Mini Custom Multi-Color Glass Gobo

Permacolor Dichroic Filters

1203-XXXX-MINI Image Spot Mini Permacolor Dichroic Glass Filter, XXXX = the four-digit color number (includes bezel to fit inside gobo cassette)

Product Number

296 20003 0651 - Image Spot Mini 3000K - IP65 - w/o Lens - Black
296 20003 0652 - Image Spot Mini 3000K - IP65 - w/o Lens - White

296 20005 5651 - Image Spot Mini 5500K - IP65 - w/o Lens - Black
296 20005 5652 - Image Spot Mini 5500K - IP65 - w/o Lens - White

296 2010T 3001 - Image Spot Mini 3000K – Track 0-10V/Triac – Black – No Lens
296 2010T 3002 - Image Spot Mini 3000K – Track 0-10V/Triac – White – No Lens

296 2010T 3003 - Image Spot Mini 3000K – Track DMX – Black – No Lens
296 2010T 3004 - Image Spot Mini 3000K – Track DMX – White – No Lens

296 2010T 5501 - Image Spot Mini 5500K – Track 0-10V/Triac – Black – No Lens
296 2010T 5502 - Image Spot Mini 5500K – Track 0-10V/Triac – White – No Lens

296 2010T 5503 - Image Spot Mini 5500K – Track DMX – Black – No Lens
296 2010T 5504 - Image Spot Mini 5500K – Track DMX – White – No Lens

296 21003 6010 - 36W /1050mA CC 0-10V Dimmable Driver
296 210000 - DMX 36W /1050mA CC DMX-RDM Driver, One Channel
296 21000 - DALI 36W /1050mA CC DALI Dimmable Drive

Image Spot Mini Data Sheet

Image Spot Mini UV Data Sheet

Image Spot Mini Photometrics Data Sheet

Image Spot Mini User Guide
