X-Effects® LED Projectors – RGBW

Dynamic Lighting Effects

The X-Effects LED and X-Effects LED HO RGBW Projectors are color-mixing fixtures that create dynamic lighting effects in wide range of indoor or outdoor applications. Effects are created by projecting colored light through the edges of two rotating pieces of Effects Glass that are mounted off-center of the optical path. This results in a projection with linear motion for creating reflected water, blowing fire, northern lights and other vivid, animated lighting effects.

Please note that the X-Effects LED Projectors do not ship with a lens. Choose from the available four lens accessories when ordering to achieve the beam spread your project requires.

Bright, Vibrant Lighting Effects

The X-Effects LED Projectors feature either 1,400 or 3,000 (HO) lumens of output of 45 and 90 watts (HO) of power. The X-Effects LED HO can maintain over 100 lumens at 65ft+ (20m+).

Designed For Use Indoors Or Outdoors

The X-Effects LED Projectors are IP65-rated for indoor or outdoor use, offering the versatility to create dynamic lighting effects anywhere they are required.

Four Available Lens Options

Whether you need to shine your effect on a building across the street or on a wall five feet away, the X-Effects LED Projectors have the proper lenses to meet every projection need.

Customizable Effects Engines

The X-Effects LED Projectors can achieve a variety of different lighting effects by changing gobos or adding color into either the Static Gobo/Filter position or into the two rotating Dynamic Effects Glass positions.

Quiet Operation

Lighting effects should be seen, not heard. The X-Effects LED Projectors are passively cooled enabling them to operate without noisy fans.

Manual & DMX Controls - RDM Compatible

The X-Effects LED Projectors feature on-board controls of the fixture’s output, as well as the speed and direction of both Effects Glass Gobos. The fixtures can also be controlled via DMX and are RDM compatible.

What’s In The Box:

  • X-Effects® LED Projector - RGBW
  • Power/Data Cable with UTL Connector
  • (2) Dynamic X-Effects Glass
  • Quick Start Guide



Please note that the X-Effects LED Projector does not ship with a lens. Choose from the available four lens accessories when ordering to achieve the beam spread your project requires. Lens options include: 19°, 30°, 50° and 70°. See photometrics tab for more information.

Input Voltage: 100-240VAC

Power Consumption: 45 and 90 (HO) Watts at maximum output

Output: 1,400 and 3,000 (HO) lumens

Color Temperature (White LED): RGBW

Lumen Maintenance: 50,000 hours at 45C (LM-79-08)

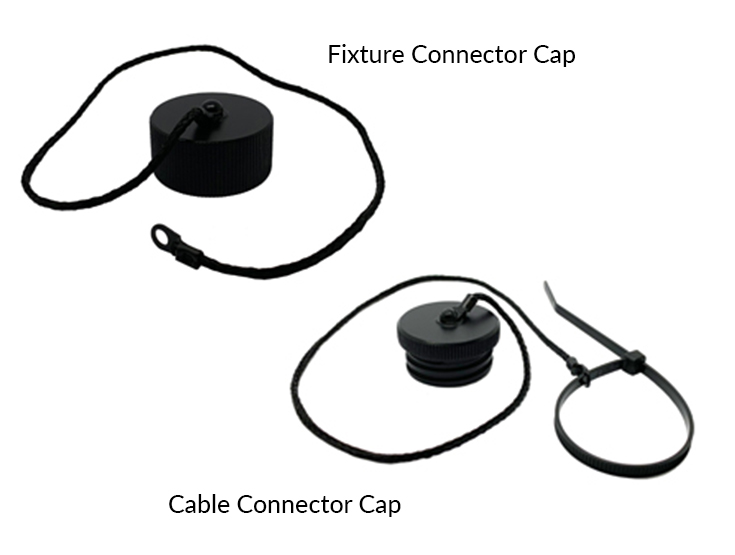

Power/Data Connection: Male UTL Connector on rear panel

     North America:  6-ft (2m) insulated cable harness with mating female UTL connector.
     AC In, DMX 512 In/Out - unterminated

     Non-North America:  Hybrid power/data cable with mating female UTL connector.
     AC In, DMX 512 In/Out -  unterminated

Number of DMX Channels: 8

RDM compatible

Operating Temp.: -13° to 113° F (-20° to 45° C)

IP Rating: IP65

Dimensions: 5.5”L x 10.1”W x 5.8”H (14.2cm x 25.8cm x 14.8cm)

                             5.5”L x 10.1”W x 6.5”H – HO (14.2cm x 25.8cm x 16.7cm - HO)

Weight: 9 lbs (4.1 kg)

                  13 lbs (5.8kg) HO

Housing: Powder Coated Aluminum

Approvals:

ETL / UL Standards #1573 and # 8750

cETL / CSA C22.2 #166

CE

etl ce

X-Effects LED RGBW Projectors:
X-Effects LED Projector – RGBW – Black – No Lens
X-Effects LED HO Projector – RGBW – Black – No Lens;

Lenses for X-Effects LED Projectors:
297000000019        X-Effects LED Projector 19-Degree Lens, Black
297000000030         X-Effects LED Projector 30-Degree Lens, Black
297000000050         X-Effects LED Projector 50-Degree Lens, Black
297000000070         X-Effects LED Projector 70-Degree Lens, Black
297000000S19        X-Effects LED Projector 19-Degree Lens, Silver
297000000S30         X-Effects LED Projector 30-Degree Lens, Silver
297000000S50         X-Effects LED Projector 50-Degree Lens, Silver
297000000S70         X-Effects LED Projector 70-Degree Lens, Silver


Please see the X-Effects LED RGBW Data Sheet for complete order tree.

Accessory Gobos & Color Filters for the X-Effects LED
The X-Effects LED Projector can achieve a variety of different lighting effects by changing gobos or adding color into either the Static Gobo/Filter position or the two rotating Dynamic Effects Glass positions.

Standard Static Gobos  and Color Filters for the X-Effects LED:
297000000095       X-Effects LED Cyan Water Effect Filter
297000000090       X-Effects LED Green Aurora Effect Filter
297000000085       X-Effects LED Amber Fire Effect Filter
1205YYYYSXFX     X-Effects LED Static Permacolor Dichroic Glass Filter
YYYY = four digit color number
Visit the Permacolor page to learn more: www.rosco.com/permacolor


250XXXXXSXFX    X-Effects LED Static Standard Steel Gobo
255XXXXXSXFX    X-Effects LED Static Image Glass Gobo
255XXXXXSXFX    X-Effects LED Static ColorWave Gobo
XXXXXX = five digit gobo number

Custom Static Gobos  for the X-Effects LED:
2507210ISXFX     X-Effects LED Custom Static Steel Gobo
260CUSBWSXFX    X-Effects LED Custom Static B&W Glass Gobo
260CUS1CSXFX    X-Effects LED Custom Static One-Color Glass Gobo
260CUS2CSXFX    X-Effects LED Custom Static Two-Color Glass Gobo
260CUSMCSXFX    X-Effects LED Custom Static Multi-Color Glass Gobo

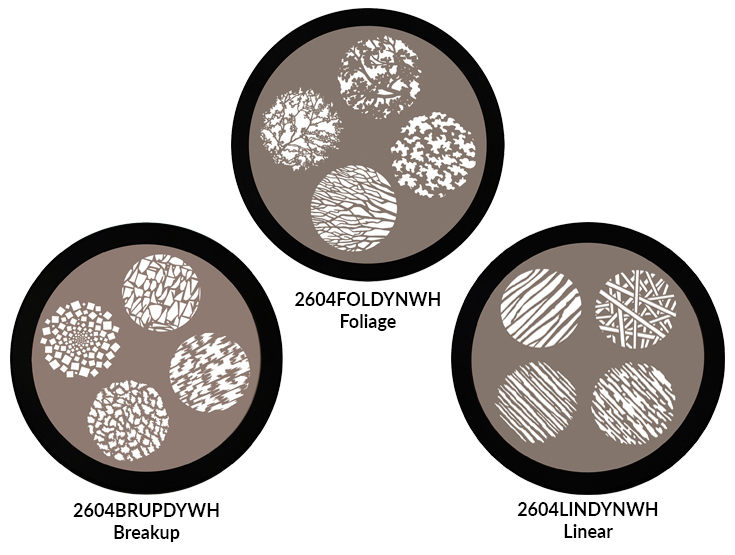

Standard Dynamic Effects Glass Gobos for the X-Effects LED:
297000000075     X-Effects LED Replacement Dynamic X-Effects Glass
255XXXXXDXFX     X-Effects LED Dynamic Image Glass Gobos (96mm)
Visit the Image Glass page to see all of the available options: www.rosco.com/imageglass
255XXXXXDXFX     X-Effects LED Dynamic ColorWave Gobos (96mm)
Visit the ColorWaves page to see all of the available options: www.rosco.com/colorwaves
XXXXXX = five digit gobo number

Custom Dynamic steel and glass gobos can be made for the X-Effects LED. Custom gobo art for the X-Effects LED Projector must be designed into the fixture’s “donut-shaped” image area.

XEffects gobo beam diagram


Custom Dynamic Gobos for the X-Effects LED:
2507210IDXFX     X-Effects LED Custom Dynamic Steel Gobo
260CUSBWDXFX    X-Effects LED Custom Dynamic B&W Glass Gobo
260CUS1CDXFX    X-Effects LED Custom Dynamic One-Color Glass Gobo
260CUS2CDXFX    X-Effects LED Custom Dynamic Two-Color Glass Gobo
260CUSMCDXFX     X-Effects LED Custom Dynamic Multi-Color Glass Gobo


X-Effects® LED Projector Data Sheet

X-Effects® LED Projector User's Guide

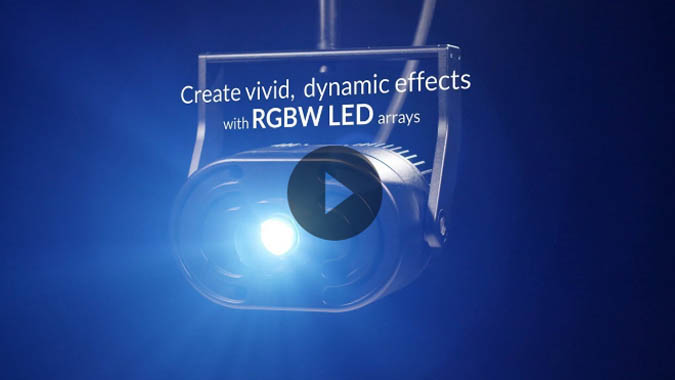

X-Effects® LED Projector – RGBW Video
