Designed for the most demanding dramatic lighting applications, each RoscoLED Tape VariColor: RGB+W Kit comes with three, 5m reels of high-quality, high-output, color-mixing LED tape, and one DMX addressable RoscoLED Control Box to provide power, dimming and color control for all three reels. Each reel comes pre-configured with a multi-pin connector for easy Plug-&-Play connectivity with the RoscoLED Control Box – no soldering required.

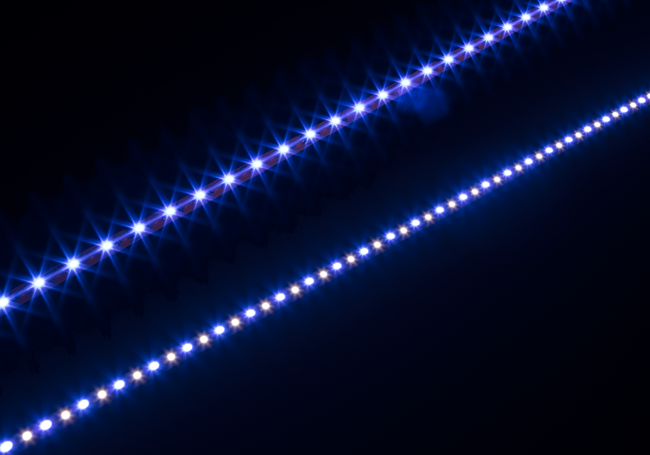

Featuring vibrant red, green and blue emitters, RoscoLED Tape VariColor products provide full-range color-mixing options. The VariColor: RGB+W Kits are available in two variants – RGB + Cool White (6000K), and RGB + Warm White (3000K) – to produce virtually any color, tint or hue your project requires. Featuring white LEDs with a CRI of 93 and a TLCI value of 92, RoscoLED Tape VariColor: RGB+W also produces clean white light with superior color rendering.
Each reel of RoscoLED Tape in the kit comes pre-configured with a multi-pin connector that is designed to quickly plug into our RoscoLED Control Boxes – no field-soldering required! RoscoLED Tape Kits are designed for quick and simple installation – featuring a balanced combination of 5m reels of LED tape and a matching control box for power and DMX dimming control.

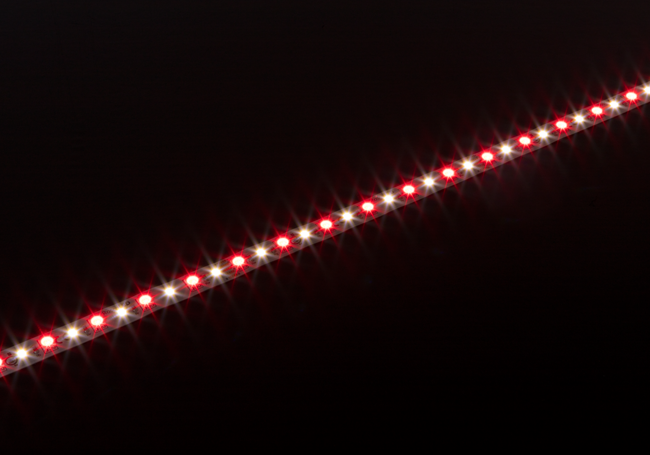

Featuring a combination of SMD5050 color emitters and SMD2835 white emitters, each reel of RoscoLED Tape - VariColor: RGB+W in the kits produces 1,440 lumens/meter. Thanks to their efficient output, reels of RoscoLED Tape – VariColor: RGB+W offer energy savings by providing an unprecedented 63 lumens/watt!

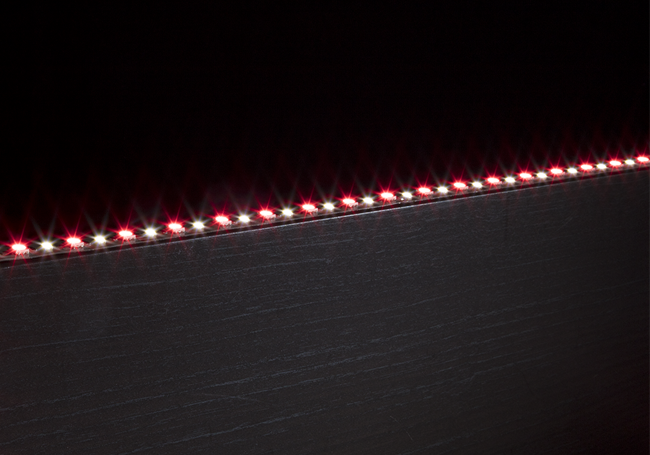

Each reel of RoscoLED Tape - VariColor: RGB+W in the kit features a robust, 2 oz. copper heat sink. The integrated copper enables efficient thermal management of the LED emitters, allowing them to run cooler and extend their lifespan. The thicker copper base also minimizes potential for damage to the electronic circuits during handling and installation.
What’s In The Kit:
(3) 5m reels of RoscoLED Tape VariColor RGB+W
(1) RoscoLED VariColor Control Box/400W/24V
(3) 5m RoscoLED 5-pin VariColor Cables
(3) RoscoLED 5-Pin VariColor Female Connectors w/Pigtails, 20 cm
RoscoLED Tape VariColor: RGB+W Specifications:
LED Type: SMD5050 (RGB) / SMD2835 (White)
Number of LEDs/meter: 48 RGB + 48 White
Heat Sink: 3 oz. Copper

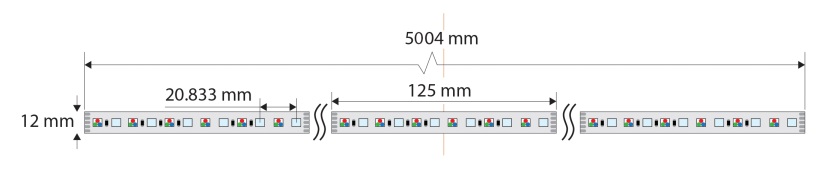

Cut Points: Every 125mm (4.92”)
White LED Color Temperature:
White LED CRI: 93
White LED TLCI: 92
Lumens/Meter: 1440
Voltage: 24VDC
Power Consumption: 23W/m or 115W/5m reel
Operating Temp: -4° to 140° F (-20° to 60° C)
Lumen Maintenance: > 47,000 hours L70 at 105C (IESNA LM-80-08 Standard)
IP Rating: IP43
Warranty: 3-years
Approvals:

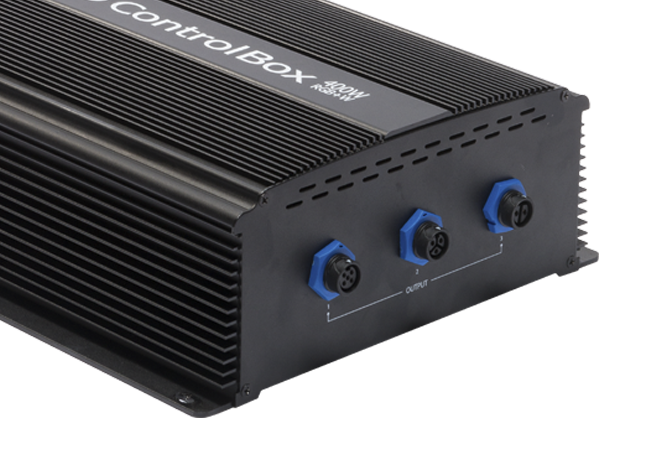

RoscoLED VariColor Control Box Specifications:
Input Voltage: 90VAC ~ 264VAC via Neutrik Powercon connector
Output Voltage: 24VDC via three 5-pin connectors
Rated Power: 400W
DMX: 5-Pin XLR In – RJ45 In/Out
Operating Temp: 32° to 122° F (0° to +50° C)
IP Rating: IP20
Dimensions: 8.25" × 8.25" × 2.82" (210 mm × 210 mm × 72 mm)
Weight: 9.5 lb (4.3 kg)
Certifications: ETL/cETL (UL8750, CSA 22.2 #250)
Product Numbers:
293220100025 RoscoLED® VariColor Kit: RGB+CW/6000K
293220100026 RoscoLED® VariColor Kit: RGB+WW/3000K
RoscoLED® Tape Mounting and Beam Control Accessories
RoscoLED VariColor IES File
Case Study: RoscoLED Tape for News Desks
Please complete this form
Specifications:
Input Voltage: 90VAC ~ 264VAC via Neutrik Powercon connector
Output Voltage: 24VDC via three, 5-pin connectors
Rated Power: 400W
DMX: 5-Pin XLR In – RJ45 In/Out
Operating Temp: 32° to 122° F (0° to 50° C)
IP Rating: IP20
Dimensions: 13” L x 9.2”W x 3.5” H (332mm x 234mm x 89mm)
Weight: 9.5 lb (4.3 kg)
Certifications: ETL/cETL (UL8750, CSA 22.2 #250)
Product Number:
A 5-pin connector extension cable that connects RoscoLED VariColor Tape to a RoscoLED VariColor Control Box.
Black with waterproof fittings
Product Numbers:
A cable splitter that allows two lengths of RoscoLED VariColor Tape to plug into one 5-pin outlet on a RoscoLED VariColor Control Box.
5-Pin Connectors
Black with waterproof fittings
Product Number:
Specifications:
Input Voltage: 12 ~ 24VDC
Output Power: 108W(12V) / 216W(24V)
Output Channels: 4
Operating Frequency: 433.92 MHz
Working Distance: 164-ft (50m)
IP Rating: IP20
Operating Temp: -4° to 131° F (-20° to 55° C)
Dimensions: 5.3” x 1.2” x 0.8” (135mm x 30mm x 20mm)
Product Number:
A 5-pin, male connector with 20cm, unterminated pigtail leads that can be soldered onto cut pieces of RoscoLED Tape – VariColor. This connector is useful for attaching cut pieces of RoscoLED Tape – VariColor to a RoscoLED VariColor Control Box, or for connecting multiple cuts of RoscoLED Tape – VariColor together using the RoscoLED VariColor Cables.
Product Number:
A 5-pin, female connector with 20cm, unterminated leads that can be plugged into the 5-pin male connector on reels of RoscoLED Tape – VariColor. The connector allows RoscoLED Tape – VariColor to be direct-wired to RoscoLED Power Supplies. This connector is also useful for connecting multiple cuts of RoscoLED Tape – VariColor together.
Note: Every reel of RoscoLED Tape – VariColor ships with one of these connectors.
Product Number:
A RJ-45 data cable for connecting the RoscoLED™ Control Box to a DMX Source or to daisy-chain the DMX signal from one RoscoLED™ Control Box to another.
